Specifications

Frame

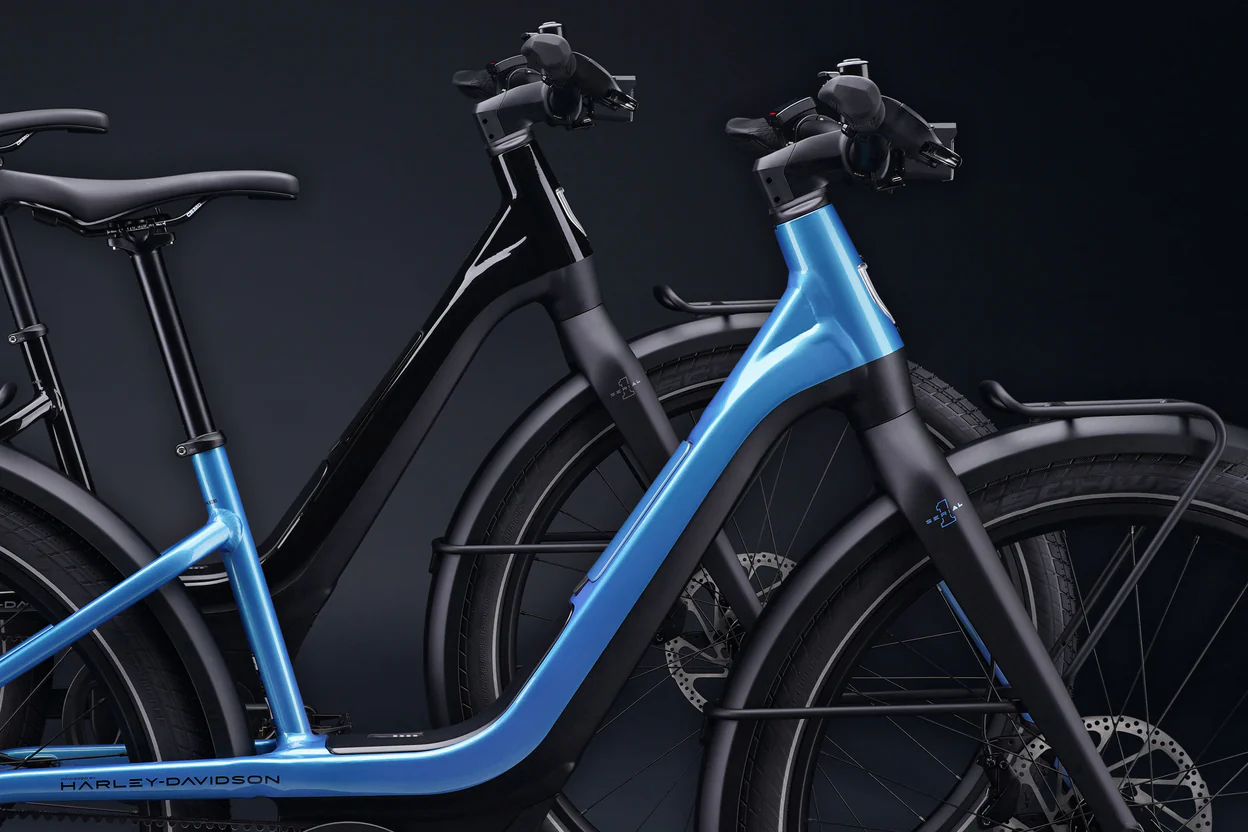

Frame	Hydroformed aluminum, welded construction, internal routing

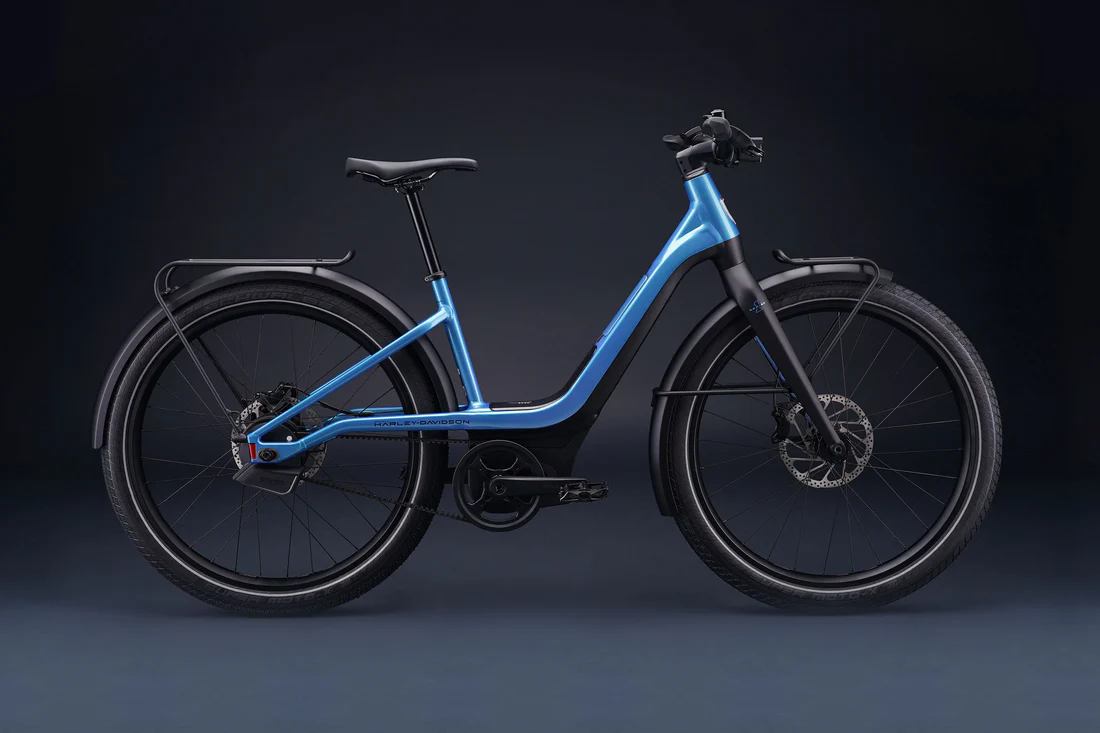

Colors	Serene Blue/Matte Black
Fork	Aluminum
Sizes	S, M, L

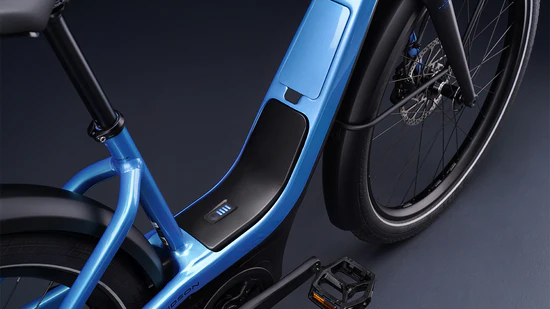

Storage Compartment	Dimensions: 206 mm X 70 mm X 42 mm

Motor

Motor	Brose S Mag, mid-drive mounting
Torque	90Nm/66 ft. lb.
Maximum Assistance Speed	20 mph

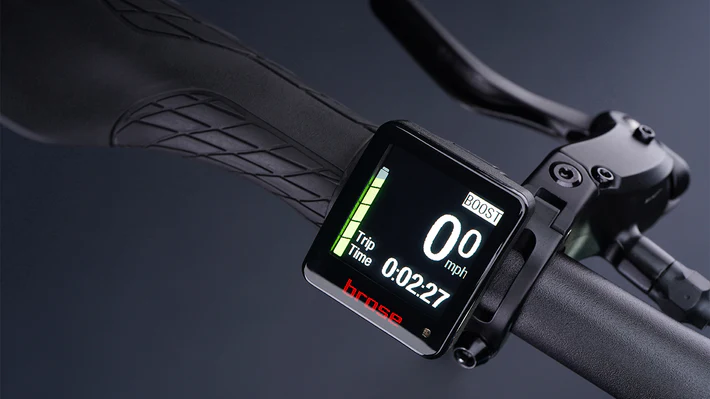

Controller	Brose Allround LCD color display
Ride Modes	Eco, Tour, Sport, Boost

Battery System

Battery	529Wh, integrated, removable
Range	Range 30-90 miles - Depends on ride mode and terrain
Charge Time	0-75% charge = 2.6hrs, 75-100% charge = 2.1hrs

Connectivity

Serial 1 App	Digital Security with Pinpoint accuracy, Google Maps Turn-by-Turn Navigation, Virtual Garage, Record My Ride, Ride Dashboard
Integrated Device Charger	Integrated USB-C plug capable of charging mobile devices (up to 10W, depending upon mobile device)

Drivetrain

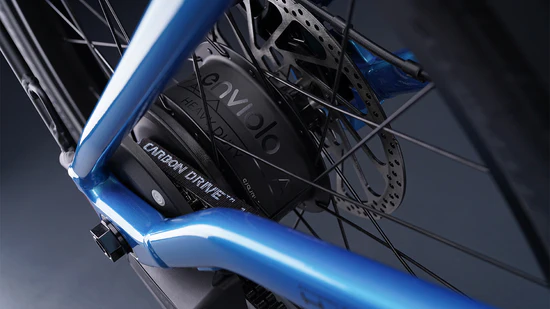

Transmission	Enviolo Automatiq intelligent auto-shifting CVT hub
Final Drive	Gates Carbon Drive belt

Components

Wheels	27.5 x 35mm alloy rims and Sapim stainless steel spokes
Tires	Schwalbe Super Moto-X 27.5 x 2.4-inch
Brakes	TRP hydraulic four-piston-caliper disc brakes front and rear, 203mm X 2.3mm heavy-duty rotors
Racks	Integrated front & rear racks, 22lb capacity each
Fenders	Integrated front & rear
Kickstand	Rear-mounted, adjustable length

Lighting

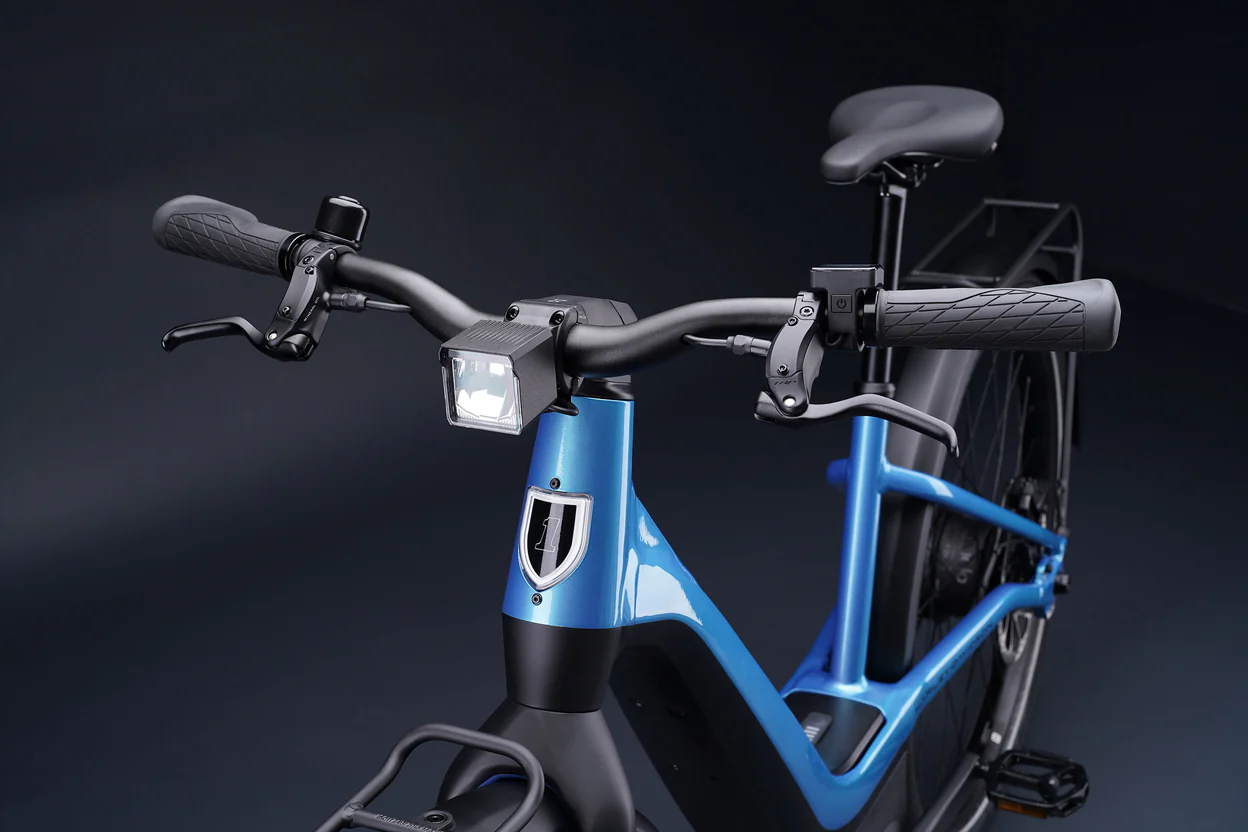

Front Light	LED headlight

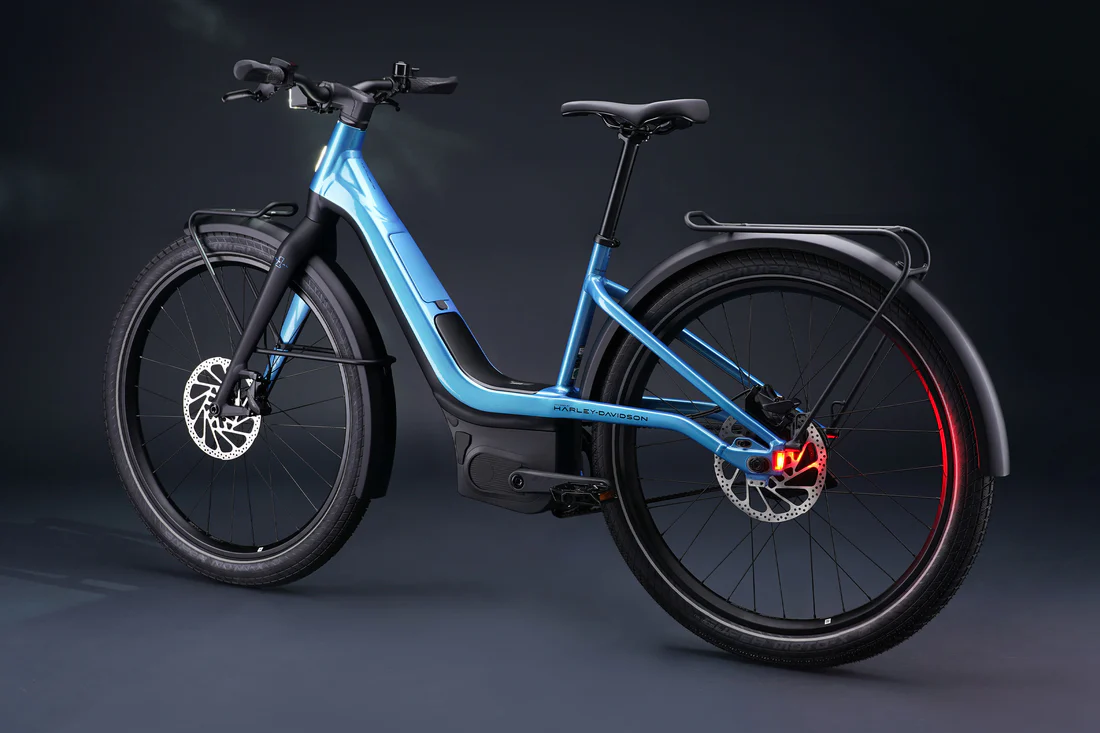

Rear Light	Integrated LED tail lights with brake light
Signature Light	Illuminated headtube light

Weight

Weight	59.5 lb (Size Medium)
Weight Limit	This bike has a total maximum weight limit of 280 lbs – combined weight of bicycle, rider and cargo

Certain features may require an additional add-on package that may not be included in the retail or sale price. Please contact the dealership for full details.
